Technical Specifications: KW1000
Equipped Engine: Cummins 194KW
Drilling Diameter: 105-800mm
Drilling Depth: 1000m

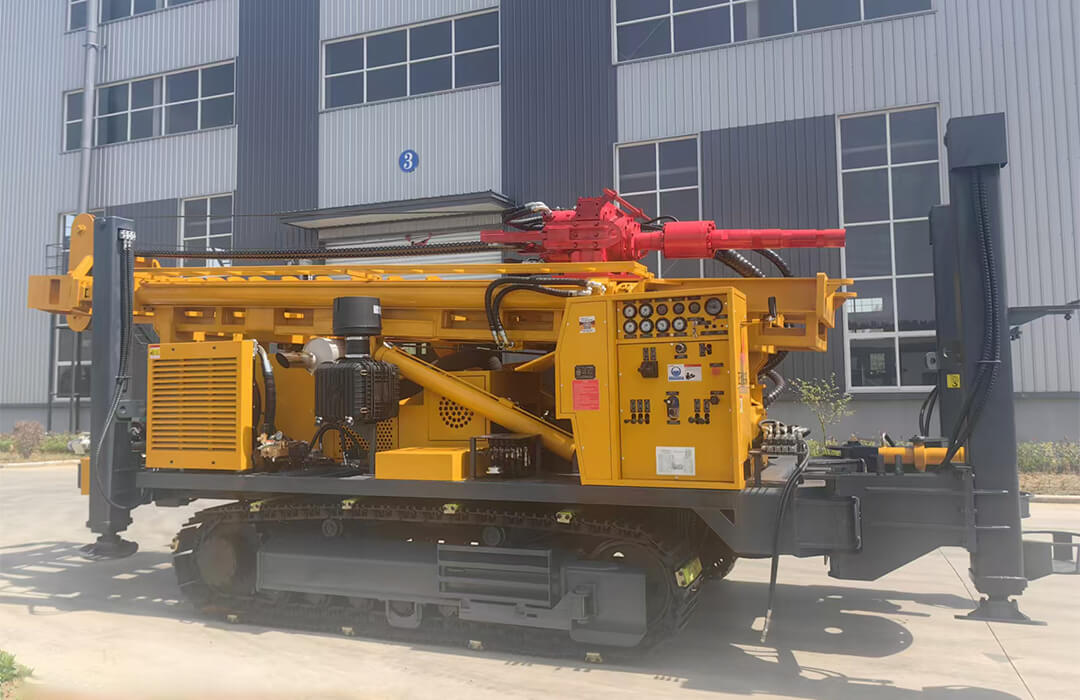

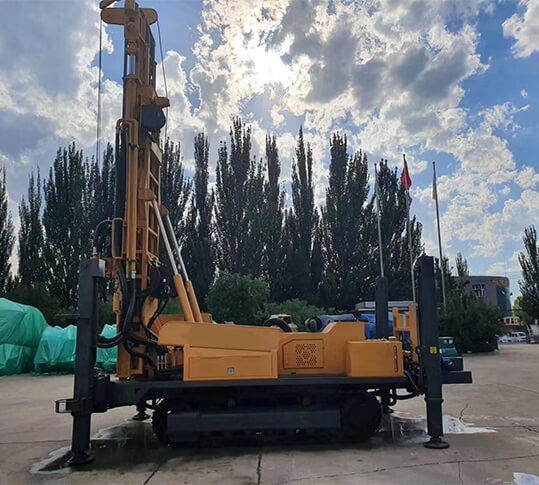

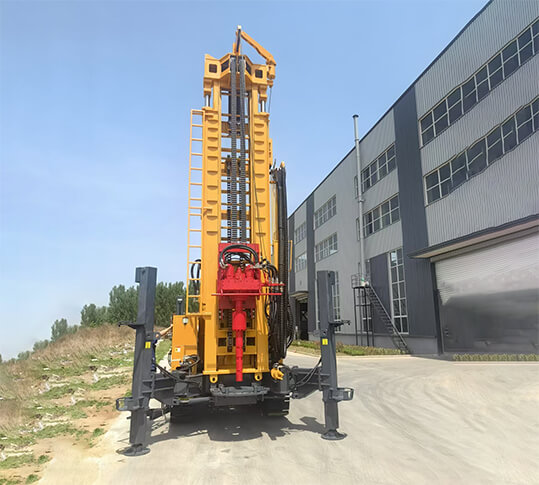

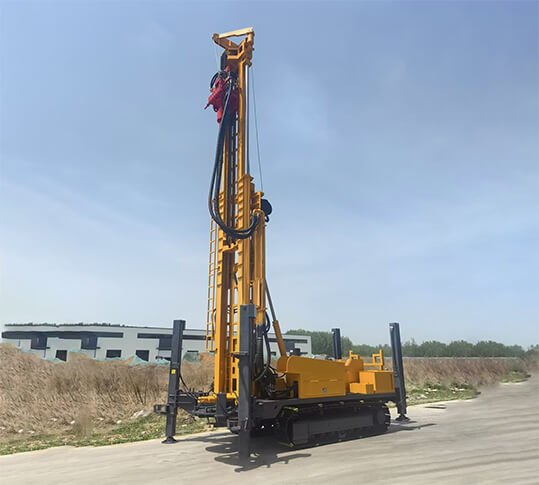

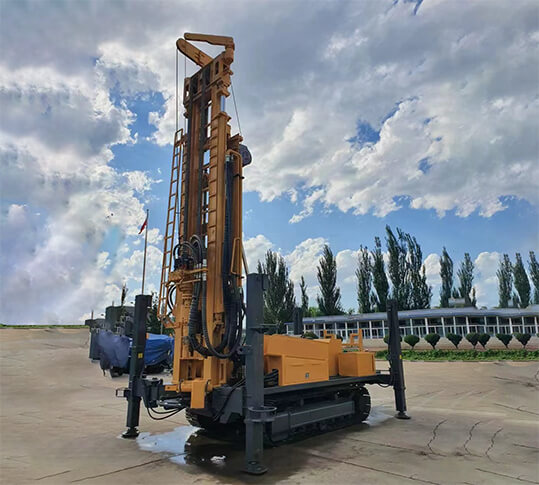

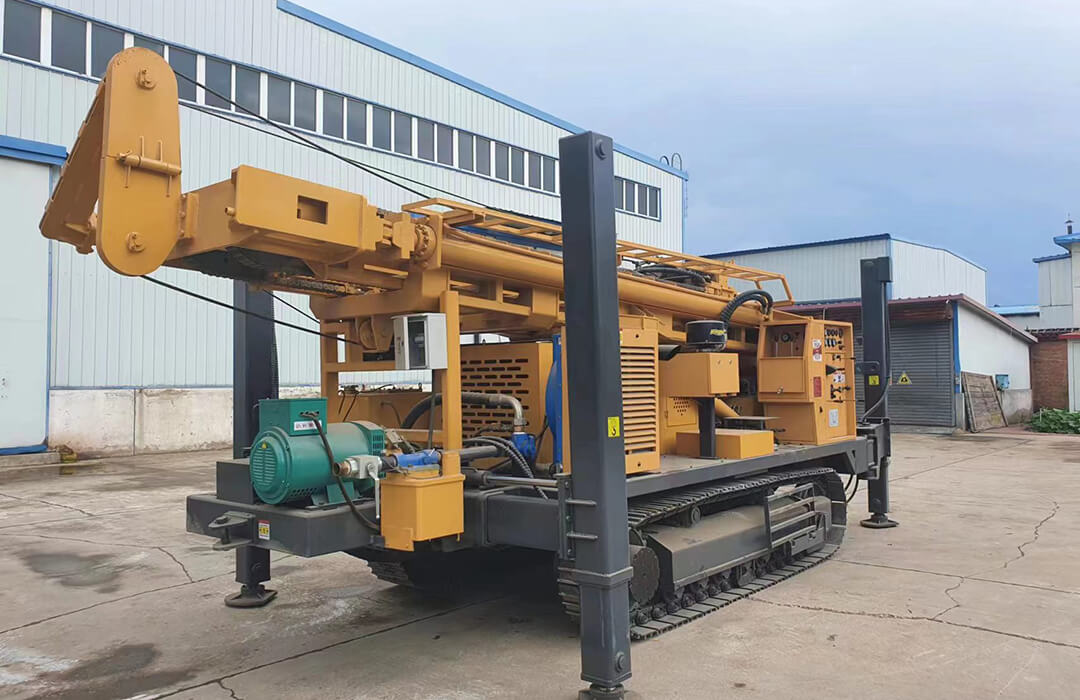

The model KW1000 multifunctional geothermal water well drilling rig is mainly used for drilling water well, ground source heat pump well and other well uses. The rig can drill work in different geological formations.
The drilling rig's drilling frame lifting, drill rod loading and unloading, rotation and feeding, outriggers, winches, walking and other actions are all realized by the hydraulic system, which greatly reduces the labor intensity, improves the construction efficiency and engineering quality, and each drilling rig can be converted into a vehicle chassis.
|
Model |
KW1000 |
|
Depth |
1000m |
|
Hole diameter |
φ105-800mm |
|
Work pressure |
1.6-8MPa |
|
Air consumption |
16-96m³/min |
|
Drill pipe length |
6m |
|
Drill rod diameter |
114mm |
|
Axial pressure |
8T |
|
Lifting power |
52T |
|
Fast lifting speed |
30m/min |
|
Fast feeding speed |
61m/min |
|
Max rotation torque |
20000-10000N.m |
|
Max Rotation speed |
70-140r/min |
|
Big auxiliary winch lifting force |
- |
|
Small auxiliary winch lifting force |
2.5T |
|
Support leg stroke |
1.7m |
|
Drilling efficiency |
10-35m/h |
|
Moving speed |
5km/h |
|
Uphill angle |
21 |
|
Diesel engine |
Cummins Brand |
|
Power |
194Kw |
|
Weight |
17500kg |
|
Dimension |
7000x2250x3000mm |
|
Application |
Complicated geological conditions: rock, mud, sand, etc. |
|
drilling method |
Rotary and propulsion hydraulic top drive, DTH or mud pump |
