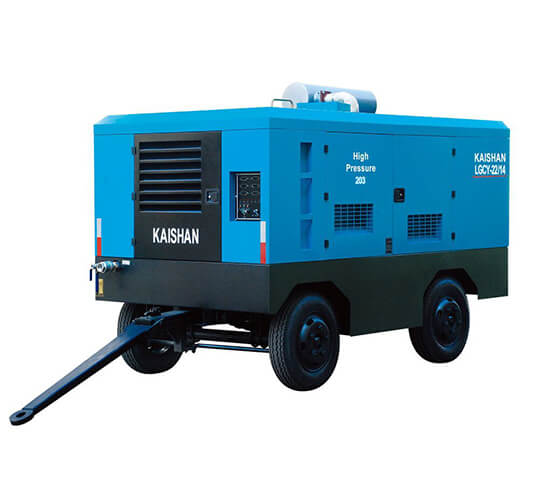

Model: LGCY (Single/Two-Stage)
Discharge Pressure(Mpa): 0.7-3.5
Flow Capacity(m³/min): 5-39
Engine Power(HP): 50-760

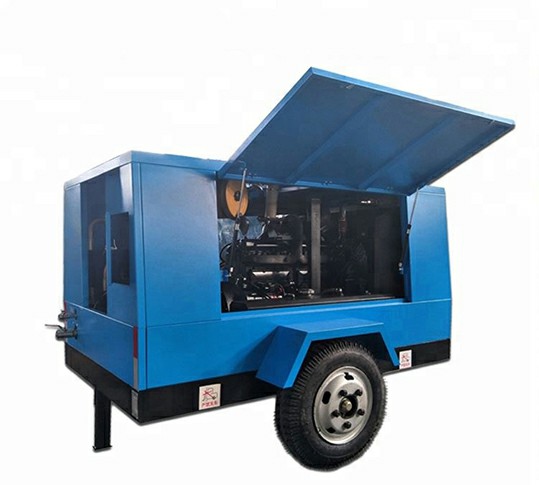

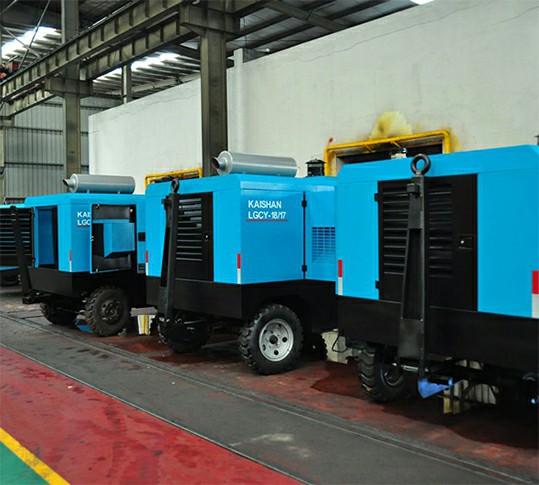

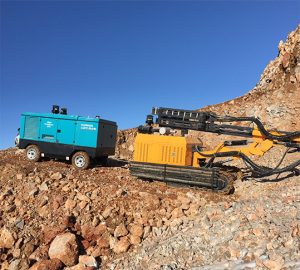

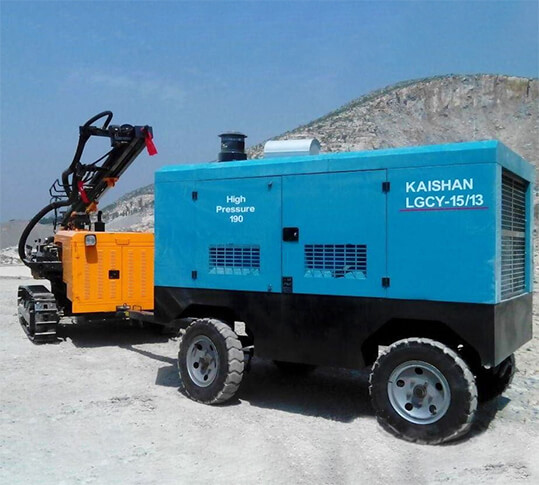

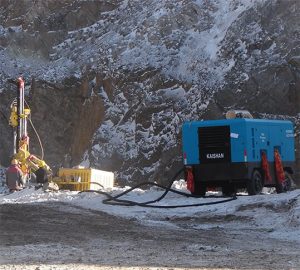

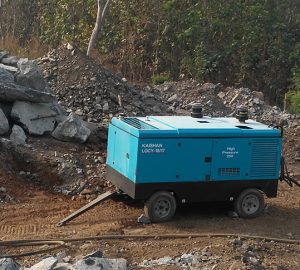

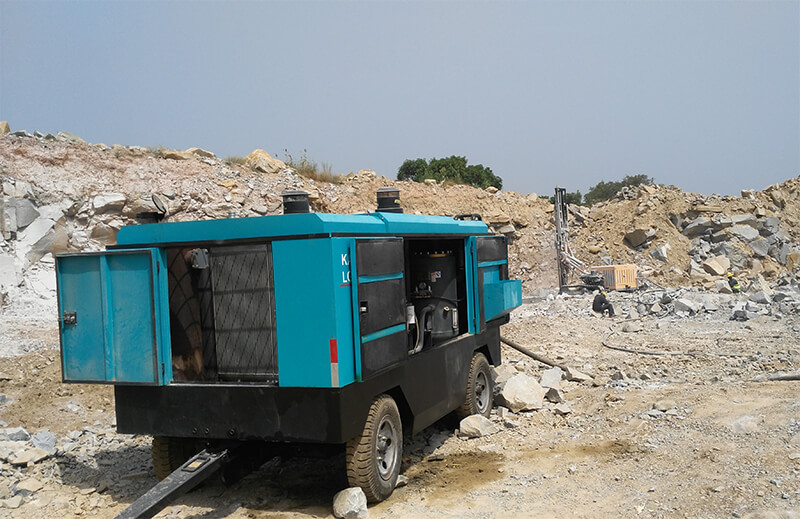

LGCY mobile diesel screw air compressor (single/two-stage) is widely applied in the industries, such as, road, railway, mine, water conservancy, shipbuilding, urban construction, energy and war industry, etc.

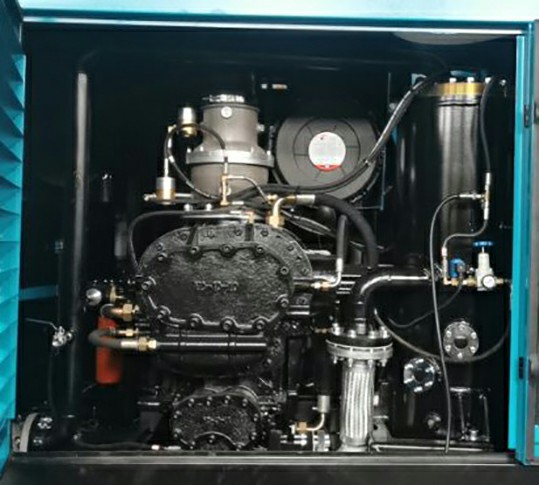

1. SKY patented screw host
2. Heavy-duty special diesel engine
3. Multiple air filtration systems
4. Efficient cooling systems
5. Triple oil and gas separation systems
6.Optional value-added systems:
Low temperature starting systems
Remote starting, monitoring and positioning systems
LGCY Mobile Diesel Screw Air Compressor (Single-Stage)
| Model | Discharge Pressure(Mpa) | Flow Capacity(m³/min) | Engine Power(HP) | Outlet Valve | Weight(kg) | Dimensions(mm) |
| LGCY-5/8(twin cylinder) | 0.8 | 5 | Xichai 50HP | G1×1,G1/2 ×1 | 740 | 1660×1020×1610 |
| LGCY-5/7 | 0.7 | 5 | Yuchai 50HP | G11/4 ×1,G3/4 ×1 | 1300 | 3240×1760×1850 |
| LGCY-5/7R | 0.7 | 5 | Kubota 60HP | G11/4 ×1,G3/4 ×1 | 1300 | 3240×1760×1850 |
| LGCY-6/7X | 0.7 | 6 | Xichai 75HP | G11/4 ×1,G3/4 ×1 | 1400 | 3240×1760×1850 |
| LGCY-9/7 | 0.7 | 9 | Yuchai 120HP | G11/4 ×1,G3/4 ×1 | 1550 | 2175×1760×1785 |

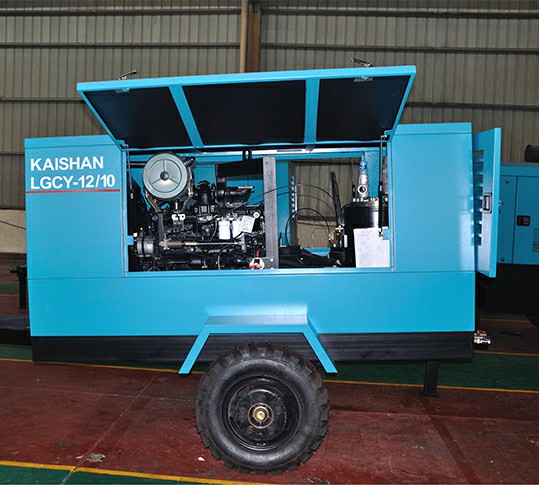

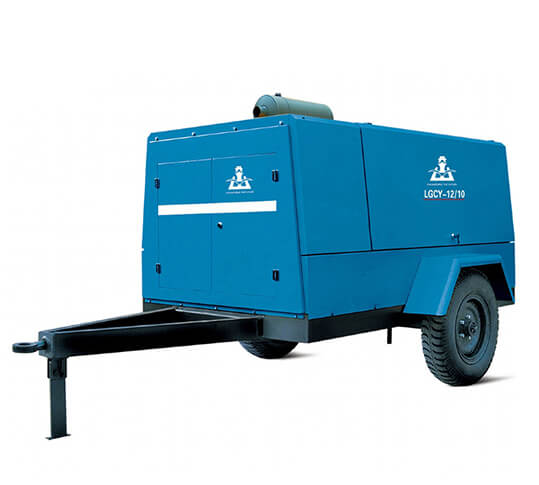

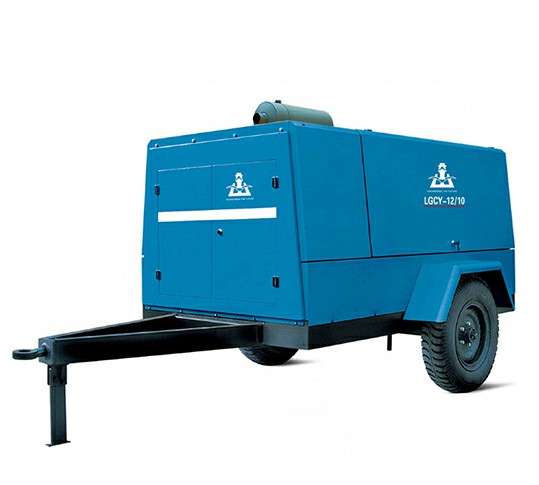

| LGCY-12/10 | 1 | 12 | Yuchai 160HP | G11/4 ×1,G3/4 ×1 | 1880 | 3300×1880×2100 |
| LGCY-12/10K(Euro 2) | 1 | 12 | Cummins 180HP(Euro 2) | G11/4 ×1,G3/4 ×1 | 2050 | 3300×1700×1900 |
| LGCY-12.5/14L(two wheel) | 1.4 | 12.5 | Cummins 180HP | G2×1,G3/4 ×1 | 2100 | 3520×1980×2256 |
| LGCY-14/14L(two wheel) | 1.4 | 14 | Cummins 210HP | G2×1,G3/4 ×1 | 2400 | 3520×1980×2356 |
| LGCY-27/10 | 1 | 27 | Yuchai 340HP | G2×1,G3/4 ×1 | 5000 | 4600×1950×2850 |
| LGCY-27/10K | 1 | 27 | Cummins 360HP | G2×1,G3/4 ×1 | 5000 | 4600×1950×2850 |
| LGCY-32/10 | 1 | 32 | Yuchai 400HP | G2×1,G3/4 ×1 | 5000 | 4600×1950×2850 |
| LGCY-32/10K | 1 | 32 | Cummins 360HP | G2×1,G3/4 ×1 | 5000 | 4600×1950×2850 |
| LGCG-65/5 | 0.5 | 65 | Yuchai 560HP | DN125 | 8500 | 4500×2350×2380 |
LGCY Mobile Diesel Screw Air Compressor (Two-Stage)
| Model | Discharge Pressure(Mpa) | Flow Capacity(m³/min) | Engine Power(HP) | Outlet Valve | Weight(kg) | Dimensions(mm) |
| LGCY-11/18T(two wheel) | 1.8 | 11 | Yuchai 160HP(four cylinder) | G11/2 ×1,G3/4 ×1 | 2100 | 3400×2000×1930 |
| LGCY-15/18-17/12T | 1.8-1.2 | 15-17 | Yuchai 190HP(six cylinder) | G2×1,G3/4 ×1 | 2200 | 3000×1520×2300 |
| LGCY-17/18-18/15T | 1.8-1.5 | 17-18 | Yuchai 220HP | G2×1,G3/4 ×1 | 2500 | 3000×1520×2300 |
| LGCY-17/18-18/15TK | 1.8-1.5 | 17-18 | Cummins 210HP | G2×1,G3/4 ×1 | 2200 | 3000×1520×2300 |
| LGCY-19/21-21/18 | 2.1-1.8 | 19-21 | Yuchai 260HP | G2×1,G3/4 ×1 | 3600 | 3300×1700×2350 |
| LGCY-19/21-21/18K | 2.1-1.8 | 19-21 | Cummins 260HP | G2×1,G3/4 ×1 | 3600 | 3300×1700×2420 |
| LGCY-21/21-23/18 | 2.1-1.8 | 21-23 | Yuchai 310HP | G2×1,G3/4 ×1 | 3900 | 3300×1800×2300 |
| LGCY-23/23-25/18 | 2.3-1.8 | 23-25 | Yuchai 340HP | G2×1,G3/4 ×1 | 4500 | 4080×1950×2687 |
| LGCY-23/23-25/18K | 2.3-1.8 | 23-25 | Cummins 360HP | G2×1,G3/4 ×1 | 4850 | 4150×1950×2850 |
| LGCY-27/25-29/18 | 2.5-1.8 | 27-29 | Yuchai 400HP | G2×1,G3/4 ×1 | 4500 | 4080×1950×2687 |
| LGCY-25/23-27/18K | 2.3-1.8 | 25-27 | Cummins 360HP | G2×1,G3/4 ×1 | 4850 | 4150×1950×2850 |
| LGCY-26/25K | 2.5 | 33 | Cummins 550HP | G2×1,G3/4 ×1 | 6800 | 4700×2160×2650 |
| LGCY-26/25 | 2.5 | 33 | Yuchai 560HP | G2×1,G3/4 ×1 | 6800 | 4700×2160×2650 |

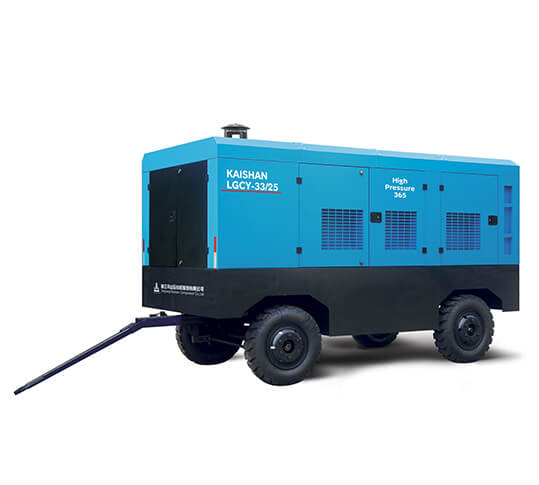

| LGCY-33/25 | 2.5 | 33 | Yuchai 560HP | G2×1,G3/4 ×1 | 6800 | 4700×2160×2650 |
| LGCY-33/25K | 2.5 | 33 | Cummins 550HP | G2×1,G3/4 ×1 | 6800 | 4700×2160×2650 |
| LGCY-39/25 | 2.5 | 39 | Chongqing Cummins 700HP | G2×1,G3/4 ×1 | 7200 | 4850×2160×2661 |
| LGCY-39/25A | 2.5 | 39 | Caterpillar 700 | G2×2 | 7200 | 5000×2200×2850 |
| LGCY-33/35 | 3.5 | 33 | Chongqing Cummins 700HP | G2×1,G3/4 ×1 | 7200 | 4850×2160×2661 |
| LGCY-33/35A | 3.5 | 33 | Caterpillar C18-650HP | G2×2 | 7200 | 5000×2200×2850 |
| LGCY-43/25-37/35Y | 2.5-3.5 | 37-43 | Volvo 760HP | G2×1,G3/4 ×1 | 9000 | 5207×2200×2720 |
| LGCY-30/8TK | 0.8 | 30 | Cummins 260HP | G21/2 ×1,G3/4 ×1 | 3200 | 3600×1800×2480 |
| LGCY-25/10TK | 1 | 25 | Cummins 260HP | G21/2 ×1,G3/4 ×1 | 3200 | 3600×1800×2480 |
| LGCY-21/13TK | 1.3 | 21 | Cummins 260HP | G21/2 ×1,G3/4 ×1 | 3200 | 3600×1800×2480 |
