Operating Weights: 102000-125000 kg
Bucket Volume: 6.5-7.5 m³
Max Digging Force: 493-610 kN
Max Swing Speed: 6-5.2 r/min

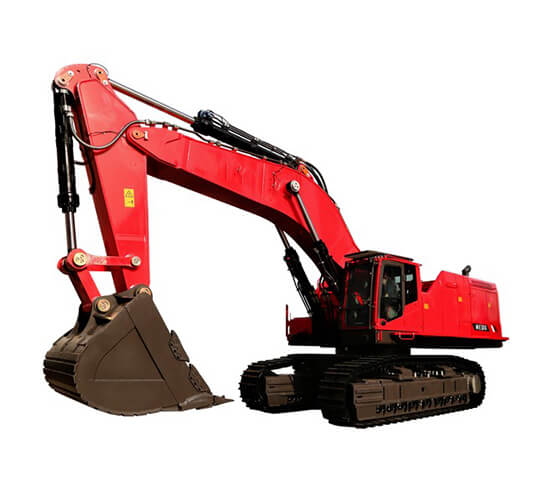

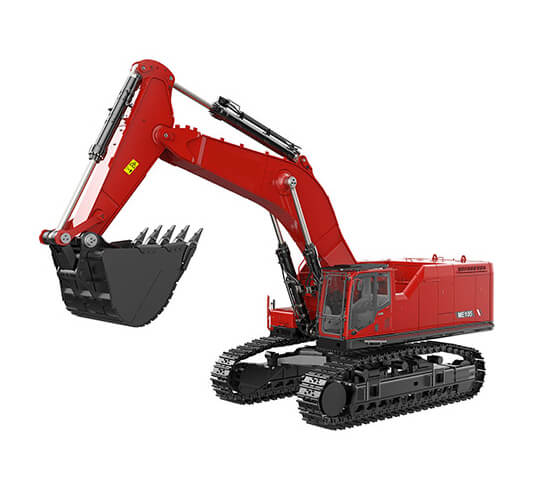

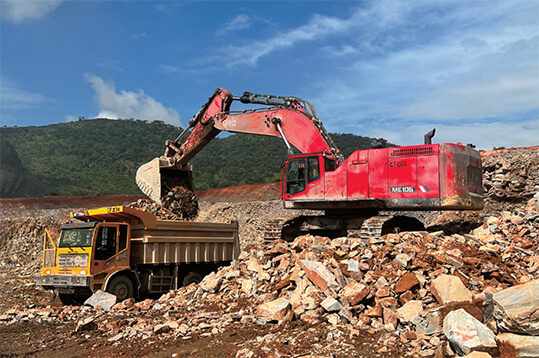

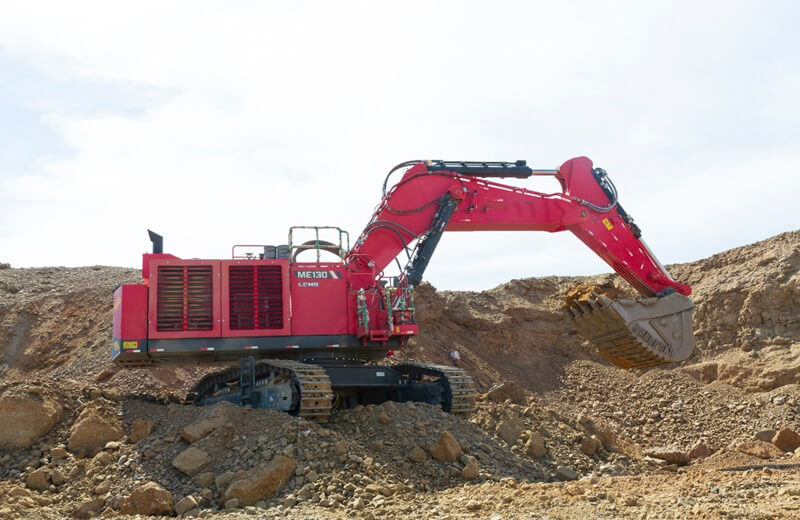

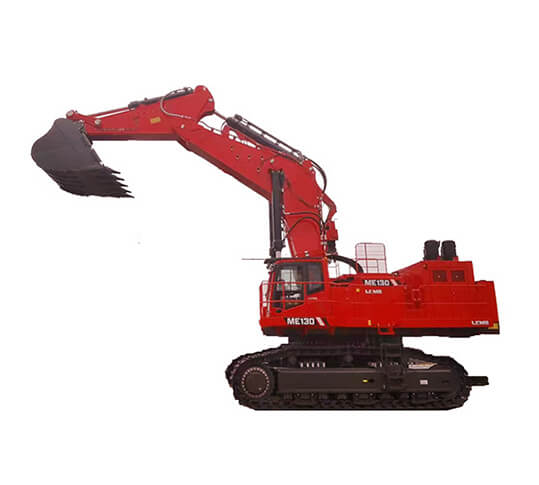

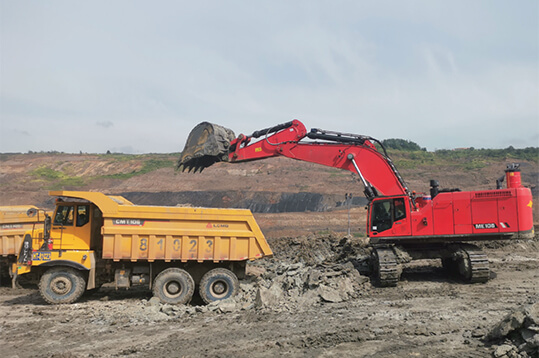

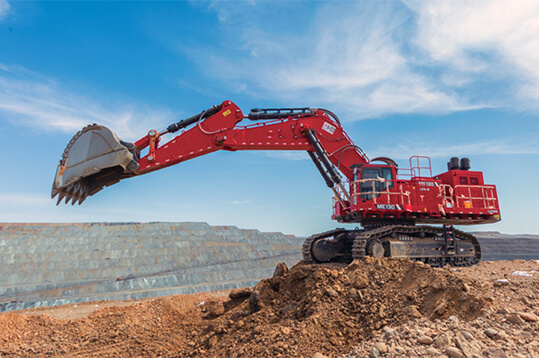

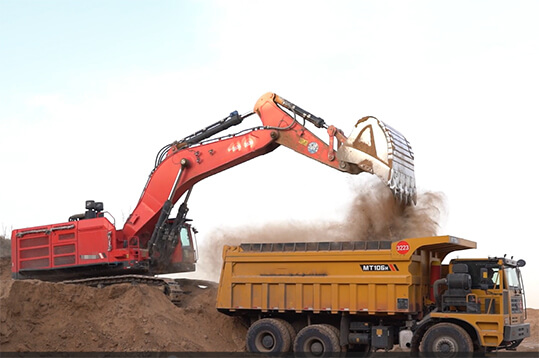

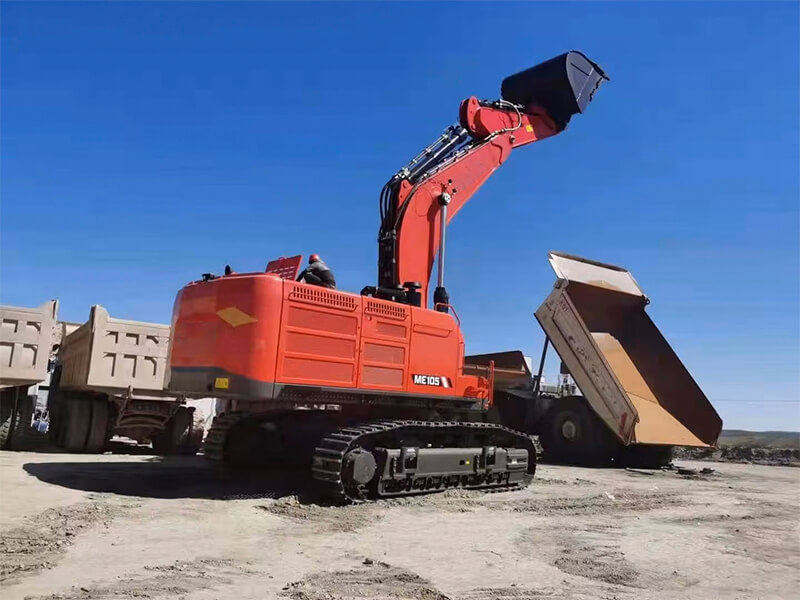

ME series mining excavators are mainly used in mining areas, from face excavation, top loading trucks and overburden, to crushing virgin ore piles. ME series large excavators are designed to complete all these tasks quickly and efficiently to maximize productivity.
| Product Specifications | ||
| Model | ME106 | ME130 |
| PERFORMANCE | ||
| Operating Weights | 102000(kg) | 125000(kg) |
| Bucket volume | 6.5(m³) | 7.5(m³) |
| Max digging force | 493(kN) | 610(kN) |
| Ground Pressure | 127.4(kPa) | 153.6(kPa) |
| Max swing speed | 6(r/ min) | 5.2(r/ min) |
| Speed | 3.1/3.5(km/h) | 2.2/3.3(km/h) |
| Climbing capacity | 35° | 35(°) |
| Overall size | 13700X4510X5200(mm) | 14750X5480X6300(mm) |
| Engine | ||
| Brand | Perkins | Cummins |
| Model | 2806C | QSK23-C |
| Rated power | 570.5(kw) | 567(kw) |
| HYDRAULIC SYSTEM | ||
| Max flow | 1498(L/ min) | 1831(L/ min) |
| Working Pressure | 350/380(bar) | 343/363(bar) |
| Main Pump | HENGLIV30GL280L | Kawasaki K7V280SH |
| Main Valve | HENGLIHVME700B | Kawasaki KMX36NAE |
| Rotary motor | HENGLI HM5X250 | Kawasak i M5X250 |
| Travel motor | MSF340 | MSF340 |
| WORKING RANGES | ||
| Boom length | 7250(mm) | 7550(mm) |
| Arm length | 2925(mm) | 3400(mm) |
| Max Reach | 12530(mm) | 13740(mm) |
| Max Digging Depth | 7110(mm) | 7960(mm) |
| Max Loading Height | 8040(mm) | 8135(mm) |
