Model: XMPYT-55.8/350
Climbing capacity: ≤14°
Maximum working height: 6.2 m
Maximum working width: 5.6 m

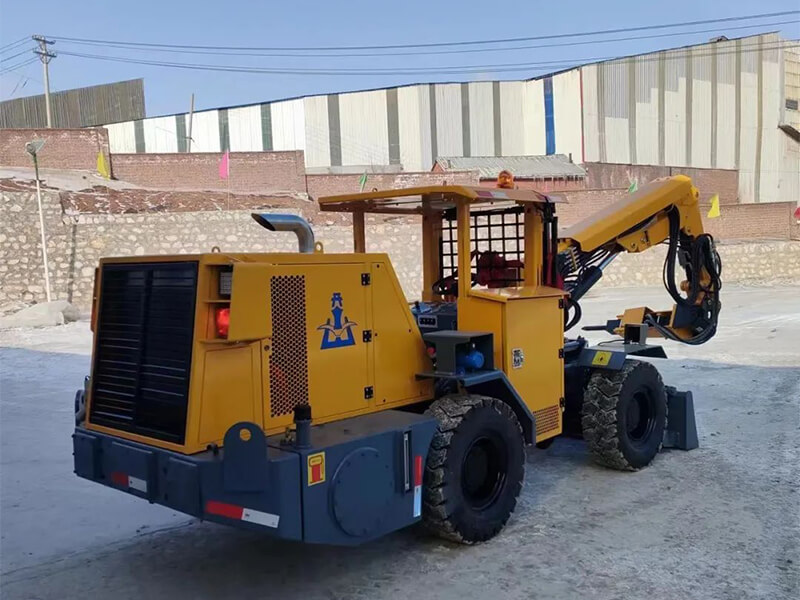

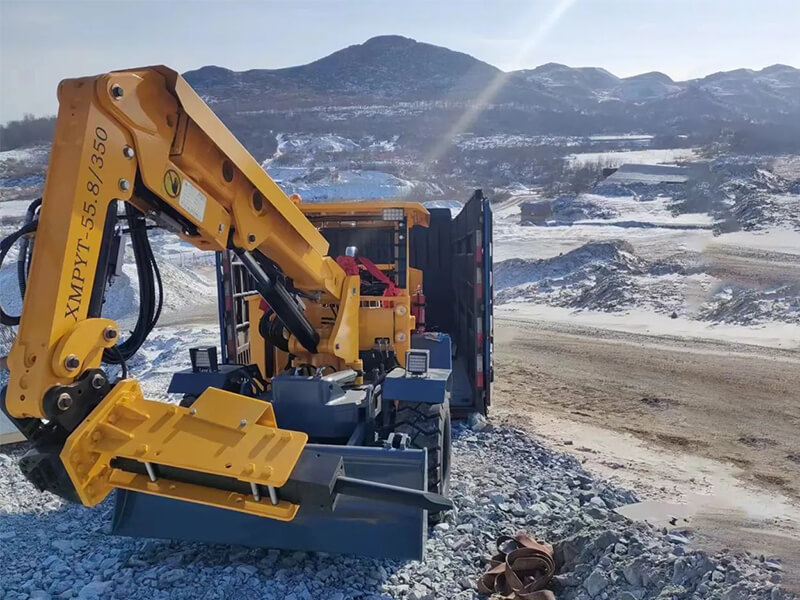

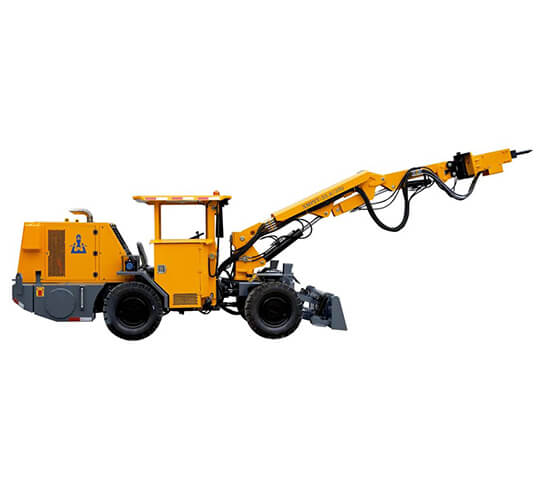

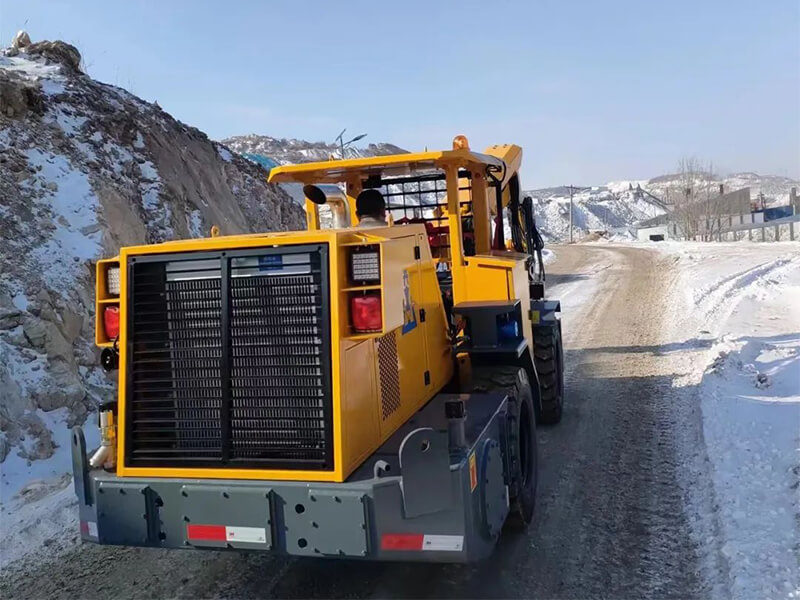

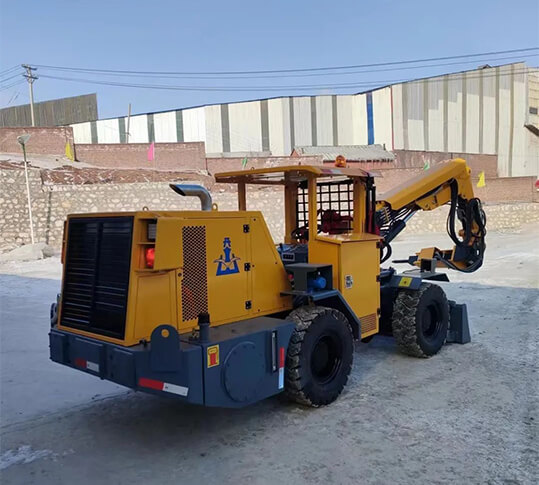

XMPYT-55.8/350 hydraulic scaling rig is driven by the China stage IV diesel engine. It is mainly suitable for scaling operations in tunnels and caves of metal mines and various underground projects.
Equipped with telescopic drill arm and hydraulic hammer driven by rotary cylinder, it can perform all-round operations on the working surface, roof, side ribs and bottom plate. At the same time, the hydraulic system adopts proportional pilot control, so it has the characteristics of flexible operation, stable movement, compact structure, good mobility, small turning radius and strong climbing ability, which improves the efficiency and safety of prying operations.
| Technical Parameters | |||
| Dimensions | Length 6000mm | Ground clearance | 230mm |
| Width 1700 mm | Hydraulic hammer | SoosanSB30 | |
| Height 1840mm | Impact energy | 350J | |
| Weight | 6500kg | Impact frequency | 9-16Hz |
| Engine | YCF3675-T480 | Drive flow | 25-40L/ Min |
| Power/ speed | 55.8kw/2200rpm | Working pressure | 90-125Bar |
| Exhaust purification | Exhaust catalyst | Angle of swing arm | ±30° |
| Drive system | Hydrostatic drive | Pitch angle of hydraulic hammer | 100° |
| Angle of swing cylinder | ±90° | ||
| Swing angle | ±6° | Drill arm expansion and contraction | 850mm |
| Tires | 300-15 | Maximum working height | 6200mm |
| Steering angle | ±40° | Maximum working width | 5600mm |
| Turning radius(inner/outer) | 2100/3800mm | Backward angle of cab | 15° |
| Travelling braking | Wet brake | Power of water pump | 0.5kw |
| Maximum tramming speed | 7km/h | Flow of water pump | 2L/ Min |
| Maximum climbing angle | 25% (14°) | Cab lift | 400mm |
